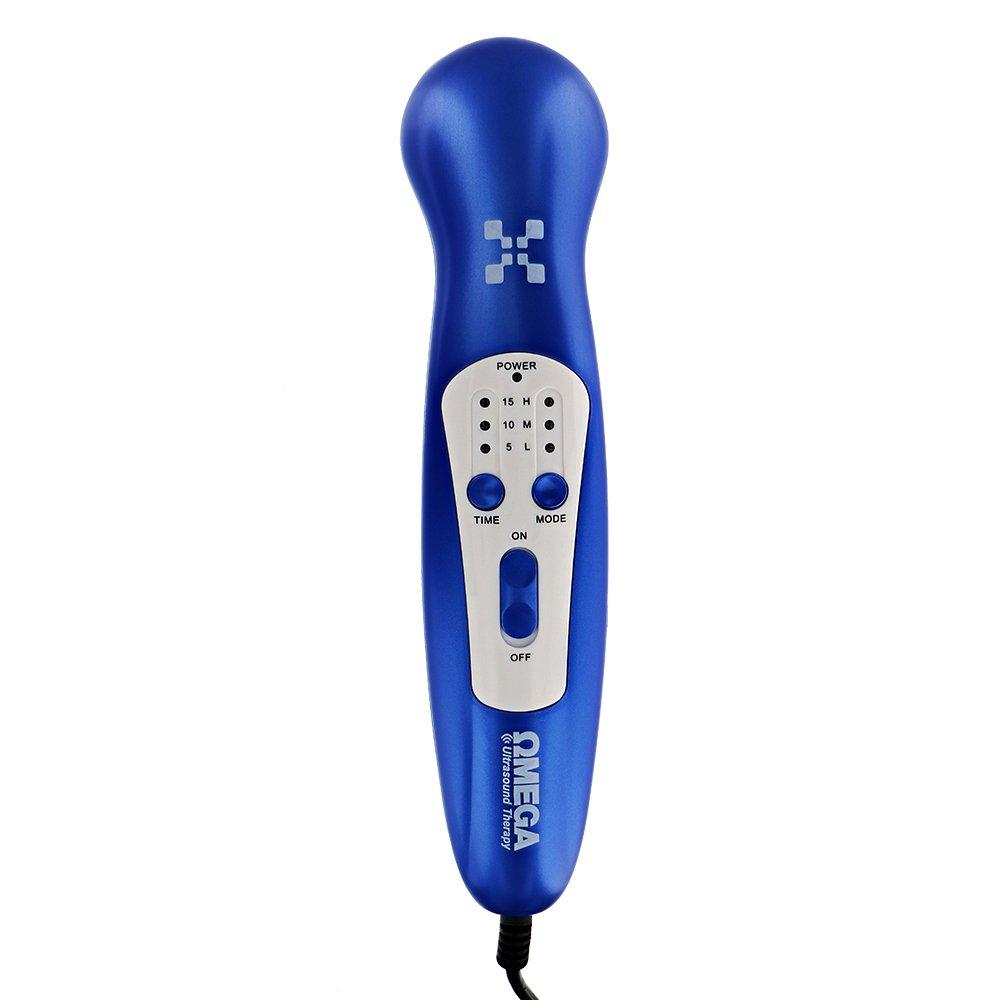

The Omega Ultrasound Unit for Pain Relief

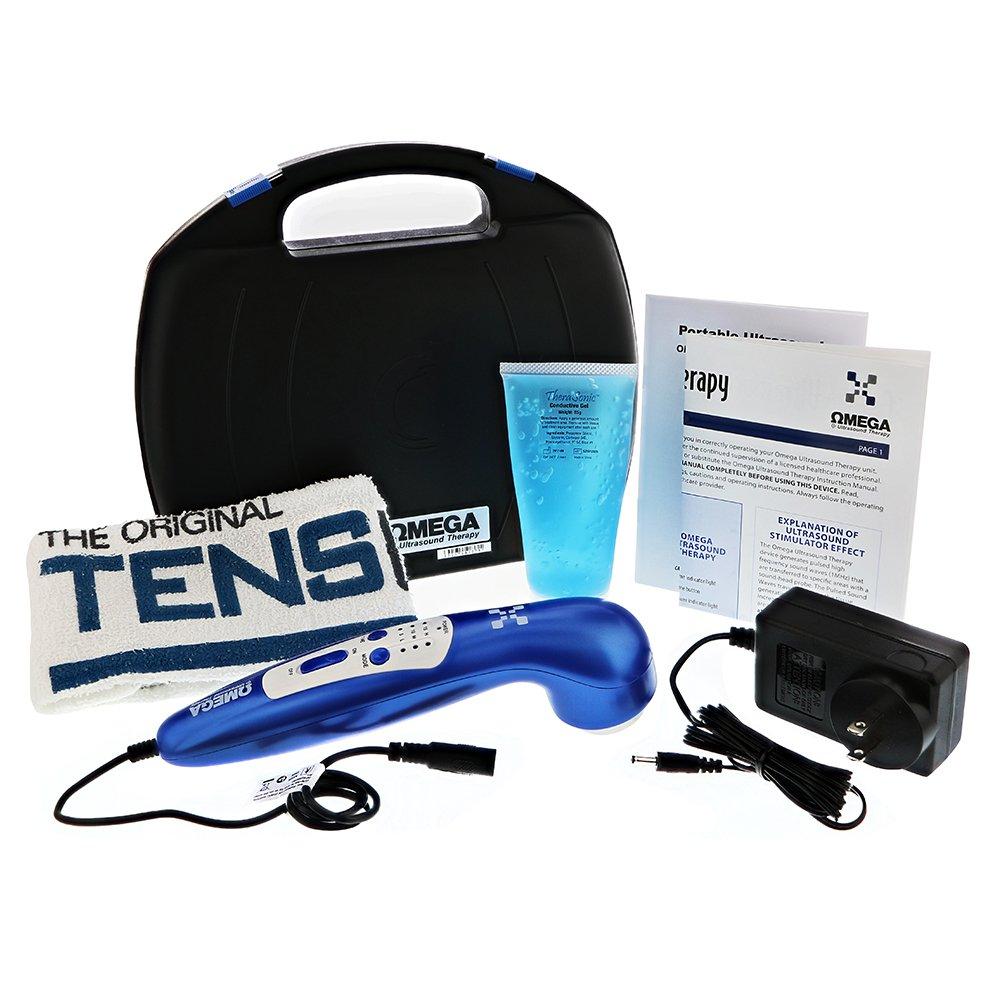

The Premium Omega Ultrasound unit features three output intensities and three treatment time selections, which can provide a wide range of therapy treatment options. The sound head is watertight for use in underwater therapy for 30 mins at a depth of up to 1 meter. The Omega Ultrasound comes complete with hard carrying case, ultrasound gel, AC/DC adapter, instruction manual and a step by step quick start guide.
- Operates in continuous mode (100% Duty Cycle).
- Head warming feature pre-heats up to 95 F.
- Watertight for use in underwater therapy for 30 mins at a depth of 1 meter.
- Ultrasound head only - IPX7).
- Three output intensities selections.
- Three treatment times (5 min, 10 min or 15 min).
- Small, ergonomic design that is easy to hold and portable.
- One year warranty
|Digital or Analog||Digital|
|Power Supply||A/C Adapter|
|Carrying Case Included||Yes|
|Accessories Included||Ultrasound Gel, Ac Adapter, Instruction Manual And Carrying Case. Everything That Is Needed To Get Started Will Be Included With Your Order.|
Power| Switch adaptor
lnput:AC100-240V.S0/60H/ Output: DC15V
Frequency.1 MHz * 10%
Modulationwave shape tOOHzilO:.
Temporalmaximum power: 6.4 Wi20*.
Temporalmaximum effective intensity 2.4W/cm'i20".
Effectiveradiabng area. 4.0cm2i20r;
Timer:5mln. 10mm. I6min
Outputintensity with duty factor: 30%.40%.50%
Sizeof main unit 202mm(L)x49mm(W)x70mm(H)
Materialof applicator Aluminium
Thedegree of protection against of water: IPX7(Only fortreatment head)
ProgramList Program Duly factor WaveCharacter
L 30% Low
M 40% Middle
H 50% High
