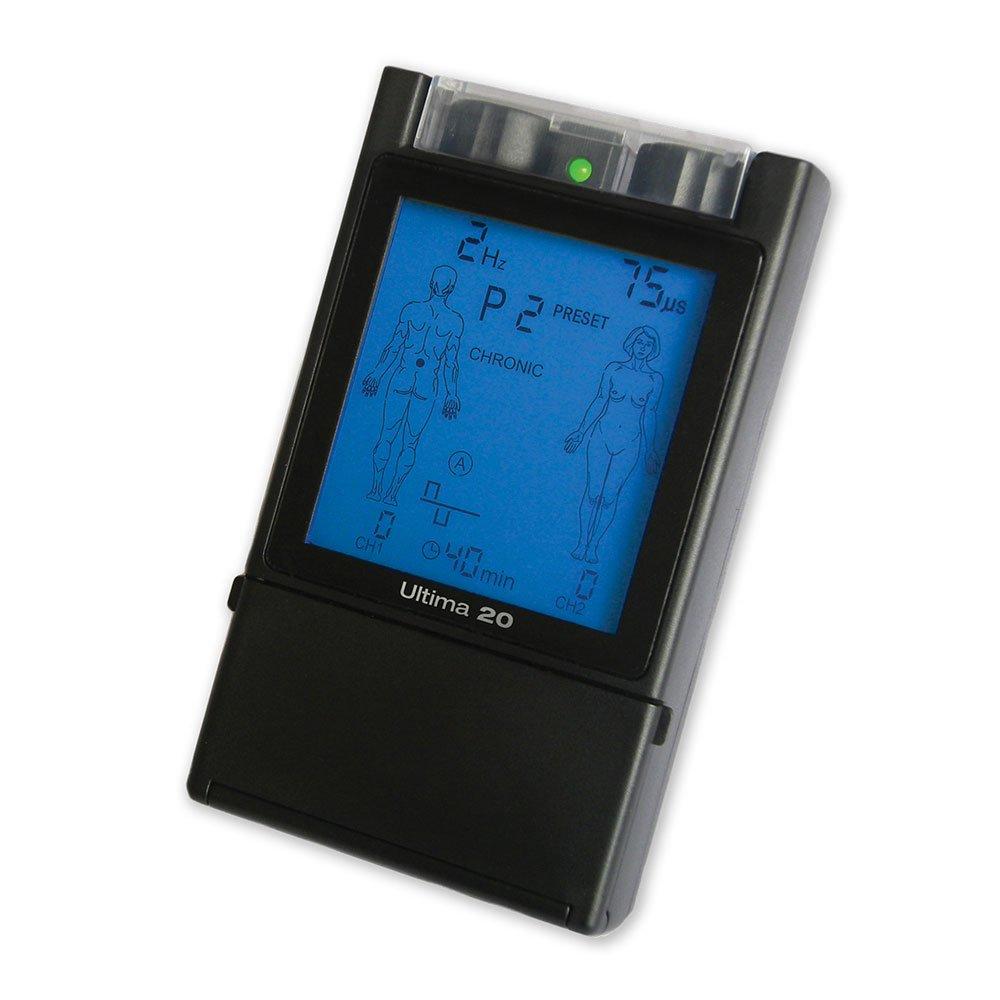

Ultima 20 Digital TENS Unit



Warranty: 5 Years


BRAND: Pain Management Technologies

  • Treats Nerve Pain Treats Nerve Pain
General Specs
Detailed Tech Specs

TENS The Ultima 20 Digital TENS device comes with a pair of lead wires, one (four) pack of electrodes, AA batteries, instruction manual, belt clip and carrying case.

The Ultima 20 TENS unit is a dual Channel device with an amazing twenty modes of operation (8 Manual and 12 preset). It is very simple to operate, and has a protective cover over the controls. Its pulse width and pulse frequency are also adjustable.

This Nerve Stimulator TENS Machine featuring 20 modes is durable, ergonomic, has always a potent defense against nerve pain. PMT’s electric nerve stimulator is a device used to treat chronic pain, and pain associated with active or post- traumatic injury unresponsive to other standard pain therapies. One simply applies their electrodes attached to the TENS unit to the surface of the skin at the site of the pain.

Ensure you adjust the pulse width (how strong the current is) and the frequency (how many times the current is delivered over time) so you can enjoy a pain free day while you take it anywhere you go! TENS neuromuscular therapy stimulates sensory nerves to block pain signal and stimulate endorphin production to help normalize sympathetic function and has a biphasic, low volt current. You can also check out some of our TENS Conductive Garments like gloves, pocket brace and more!

It is recommended that you consult your doctor before purchasing any TENS unit on our website to ensure you are purchasing the most appropriate model for your condition. Being said, it may provide you relief for the following: back ache, cervical arthrosis, torticollis,arthritis, sports injuries, ankle sprains, muscular strains, myalgia, rheumatism, neuralgia, labour, after surgery, migraine, or menses.

To reduce the pain and discomfort in hands and feet, you can check out the new Ultima Neuro Hand & Foot System

General Specs
Pulse Width ControlYes
Built-in TimerYes
Digital or AnalogDigital
Output Power0-130 mA
Power SupplyAA Batteries
Warranty5 Years
Carrying Case IncludedYes
Accessories IncludedTwo Lead Wires, Four Self-Adhesive Reusable Electrodes, Two Aa Batteries, Instruction Manual And Carrying Case. Everything That Is Needed To Get Started Will Be Included With Your Order.
Detailed Tech Specs

Ultima 20 TENS Features and Common In-use Instructions:

Labels ACUTE and CHRONIC will switch on according to the Pulse Width (50 us = Gate Control, then most suitable to ACUTE pain – Above 50 us = Endorphins then most suitable to chronic pain), regardless the pulse width is manually or automatically adjusted.

Symbols will show the occurring phase (if blinking) or the passed phase (if permanently ON) of the PRESET programs.

Labels CONT, MOD and BURST have not to be shown during the PRESET programs. When mode changes, the intensity will automatically go down to zero.

When the unit is turned on, it will automatically enter the mode that the unit had worked in before the unit was turned off.

When the treatment timer is set, it will begin to count down one minute by one minute; once it counts down to zero, the unit will automatically shut off.

When the pulse rate, pulse width or intensity is being adjusted, the auto-repeat function is available, when the key is held down over 1 second, it will automatically increase or decrease 1 step per 1/4 second.

By pressing “PR-” key and “PW-” key simultaneously, the form of the stimulation wave is changed (for manual programs only) and the change is directly felt by the user.

By pressing “MODE” key and “PR-” key simultaneously for 4 seconds, the unit will be locked or unlocked in toggle. While the unit is locked, all parameters cannot be adjusted except timer and intensity. By removing batteries or pressing ON/OFF key cannot change the status of locked/unlocked.

The treatment time will be accumulative recorded when the output level is above zero, by pressing “MODE” key and “TIME” key for 4 seconds the treatment time accumulated in minute can be displayed, or return back to the previous normal display in toggle; by pressing “MODE” key and “PW-” key for 4 seconds will clear the treatment time to zero. When the unit intensity levels are 0 on both channels, and it has not been in use for 5 minutes, the unit will be shut off automatically.

Indications for Use: Systemic Pain:

  • Bursitis
  • Cancer
  • Causalgia
  • Multiple Sclerosis
  • Neuralgia
  • Osteoarthritis Phantom Limb Syndrome
  • Raynaud's Syndrome
  • Rheumatoid Arthritis
  • Synovitis
  • Diabetic Peripheral Neuropathy

Head and Neck Pain:

  • Cluster Headaches
  • Dental Disorders
  • Migraine Headaches
  • Spondylosis
  • Sprains/Strains
  • Suboccipital
  • Headaches
  • TMJ Syndrome
  • Torticollis
  • Trigeminal Neuralgia
  • Whiplash

Abdominal Pain:

  • Diverticulosis
  • Dysmenorrhea Labor
  • Postoperative Pain

Back Pain:

  • Facet Syndrome
  • Intercoastal Neuralgia
  • IVD Syndrome
  • Lumbago
  • Lumbosacral Pain Radiculitis
  • Sprains/Strains
  • Thoracodynia
  • Whole Back Pain

Lower Extremity Pain:

  • Ankle Pain
  • Foot Pain
  • Fractures
  • Ischialgia
  • Knee Pain Passive Stretch Pain
  • Sciatica
  • Sprains/Strains
  • Tendonitis
  • Thrombophlebitis

Upper Extremity Pain:

  • Epicondylitis
  • Frozen Shoulder
  • Hand Pain
  • Peripheral Nerve Injury
  • Sprains/Strains
  • Subdeltoid Bursitis
  • Wrist Pain
